🛑 STOP SCROLLING: Here is the truth behind this “100-Year-Old” Rainwater Filter. 🌧️🚰
You’ve probably seen this image floating around with a clickbait caption warning about a “tiny mistake.” I did the research so you don’t have to click the shady links.

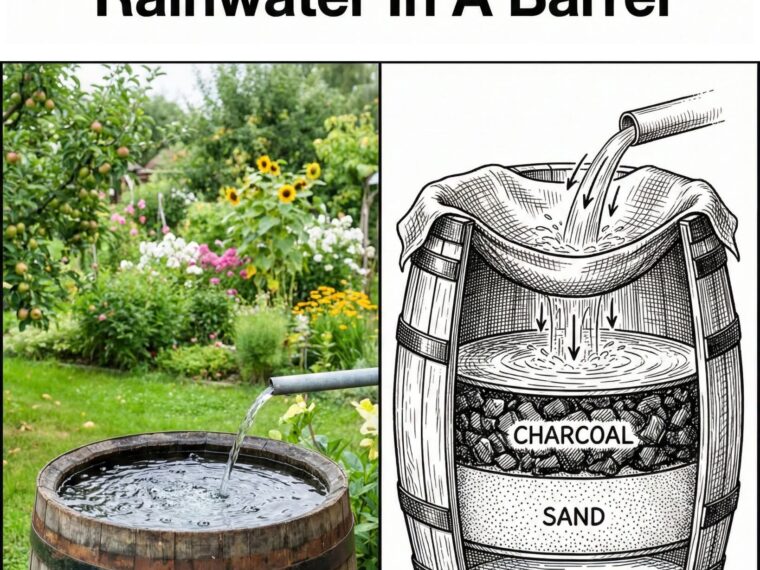

This diagram is legit. It comes from a real book published in 1909 called “Household Discoveries and Mrs. Curtis’s Cookbook.” Back then, before city water pipes reached everyone, this was how families turned roof runoff into usable water.
Here is the REAL info on how to build it, how it works, and the one mistake that will actually ruin your water.
👇 THE 100-YEAR-OLD RECIPE (Top to Bottom) 👇 If you were building this in a 55-gallon drum today, here is the correct layering order (Water flows down through these):
Top Layer: Clean Gravel/Pebbles.
Purpose: Acts as a “splash guard” to prevent the water from churning up the sand/charcoal below. It catches big leaves and twigs.
Second Layer: Fine Sand.
Purpose: The mechanical filter. This traps smaller floating particles, dirt, and grit.
Third Layer: Wood Charcoal (The “Secret” Ingredient).
Purpose: Chemical filtration. Charcoal is porous; it traps microscopic impurities, absorbs bad odors, and improves the taste. The 1909 book specifically recommended “hard maple charcoal.”
Bottom Layer: Gravel + Mesh/Canvas.
Purpose: Drainage. This prevents the charcoal and sand from washing out of the spigot and into your glass.
⚠️ THE “TINY MISTAKE” THAT DESTROYS YOUR STOCKPILE ⚠️
In rainwater harvesting, that mistake is The First Flush.
Your roof is full of bird poop, pollen, dust, and dead bugs. If you let the very first gallon of rain go straight into this filter, you are dumping a concentrated “sludge” of bacteria directly into your clean sand and charcoal.
The Consequence: The filter gets clogged immediately, bacteria colonize the charcoal (making it toxic instead of cleaning it), and the water smells like rotten eggs.
The Fix: You need a “First Flush Diverter”—a simple pipe that catches the first 5 gallons of rain and seals it off, so only the clean rain following it enters the barrel.
☠️ A DEADLY MISTAKE TO AVOID (Please Read) Do NOT use BBQ briquettes (like Kingsford) for the charcoal layer. They contain coal dust, limestone, borax, and lighter fluid additives.
The Fix: You must use Activated Carbon (best) or natural Lump Charcoal (okay) made from untreated hardwood.
❓ REALITY CHECK: Can you drink it? In 1909? Yes. In 2025? Be careful. While this filter removes sediment, bad tastes, and some chemicals, it DOES NOT remove viruses or all bacteria.
Verdict: This water is perfect for gardening, washing clothes, or flushing toilets. If you need to drink it in an emergency, run it through this filter AND THEN boil it for at least 1-3 minutes (or use bleach/UV drops).
✅ Save this post so you have the layers written down for your emergency prep!
